Silicon Carbide-graphite Composite Crucibles Efficiency For Zinc Melting Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | Baidun/J&J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiate |
| Packaging Details: | Export Wooden Packing |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 100pcs+ |
|
Detail Information |
|||
| Material: | Graphite And Silicon Carbide | Style: | Conventional Crucible |
|---|---|---|---|
| Color: | Black | Thermal Conductivity: | High |
| Graphite Content: | 45%-50% | Maximum Operating Temperature: | 1600℃ |
| Highlight: | silicon carbide graphite crucible for zinc melting,zinc melting crucible with graphite composite,efficient crucible for zinc applications |
||
Product Description

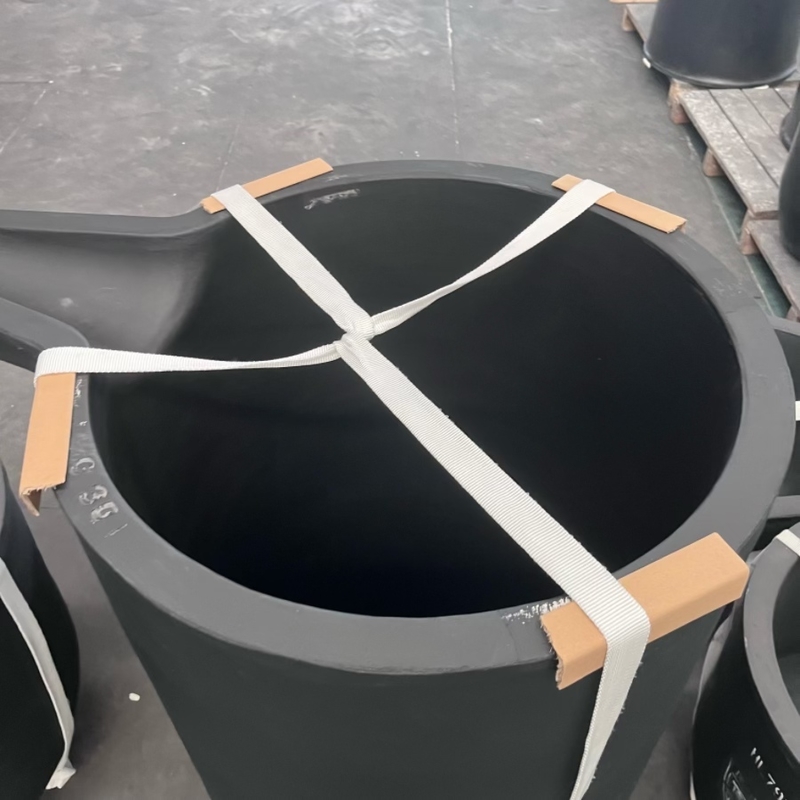

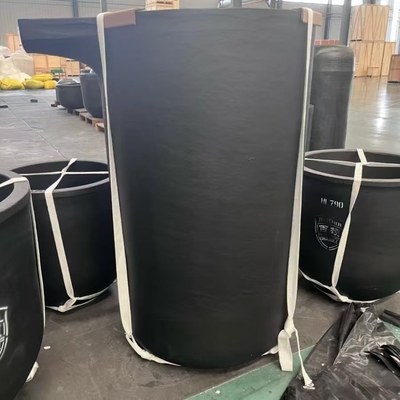

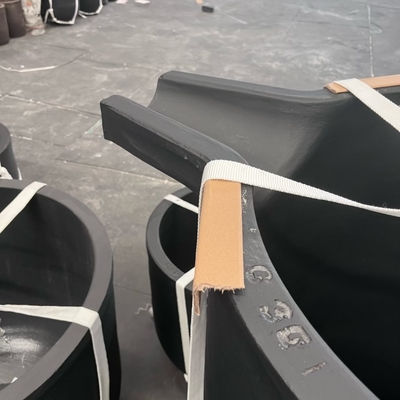

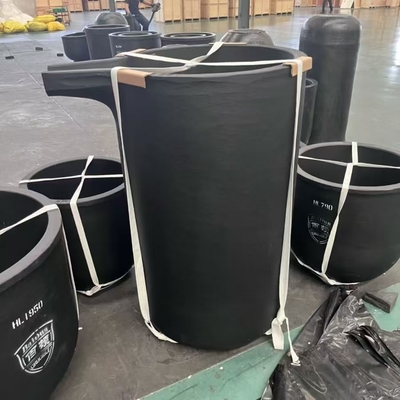

Silicon Carbide-Graphite Composite Crucibles for Zinc Melting Applications
Melting and casting zinc crucible designed for 1600℃ temperature metal melting processes. These advanced refractory vessels combine silicon carbide (SiC) and graphite materials to deliver exceptional performance, durability, and efficiency for zinc melting applications.
Product Attributes
| Attribute | Value |
|---|---|
| Style | Conventional type Crucible |
| Application | Melting and casting of non-ferrous metals |
| Surface Finish | Smooth |
| Country Of Origin | China |
| Material | Silicon Carbide and Graphite |
| Shape | Cylindrical |
| Corrosion Resistance | Good |
| Thermal Conductivity | High |
| Density | 2.21-2.25 g/cm3 |
Key Features
- Extended Service LifeCombination of silicon carbide's hardness and graphite's lubricity resists wear, erosion, and thermal fatigue, outperforming traditional graphite or clay-bonded crucibles.
- Energy EfficiencyHigh thermal conductivity reduces melting time and energy consumption, lowering operational costs and environmental impact.
- Optimized Melt QualityNon-reactive nature prevents contamination of molten zinc, ensuring high-purity outputs for precision applications like Zamak alloy production.
- Versatility and ReliabilitySuitable for both batch and continuous melting processes, performing consistently in high-temperature environments (zinc melting point: ~420°C).
- Cost-EffectivenessHigher initial investment than standard graphite crucibles, but extended lifespan and reduced downtime result in lower total cost of ownership.
Product Specifications
| Name | SiC Graphite Crucible For Zinc Melting | Category | Isostaic Graphite Crucible |
|---|---|---|---|
| Material | Silicon Carbide And Graphite | Brand | Baidun/J&J |
| Place of Origin | ShanDong, China | Application | Melting And Holding Of Non-ferrous Metals |
| Applicable target | Oil Furnace, Gas Furnace, Coal Furnace, Flame Furnace, Electric Furnace | Style | Conventional Type Crucible |
| Maximum working Temperature | 1600℃ | Melting Metal | Non-ferrous metals |
Comparison with Alternative Crucibles
| Property | SiC-Graphite Composite | Pure Graphite | Pure Silicon Carbide |
|---|---|---|---|
| Thermal Conductivity | Excellent | Highest | Very High |
| Mechanical Strength | High | Low (Brittle) | Highest |
| Thermal Shock Resistance | Excellent | Good | Superior |
| Corrosion Resistance | Excellent | Good (with glaze) | Exceptional |
| Lifespan | Longest | Short to Medium | Long |
| Cost Efficiency | High (long-term) | Medium | High |
Ideal Applications
- Zinc Die-Casting: High-purity melting with minimal iron contamination
- Galvanizing: Efficient melting for continuous coating processes
- Zinc Alloy Production: Reliable performance for specialized alloys (e.g., Zamak 3, Zamak 5)
- High-Throughput Foundries: Suitable for 24/7 operations with minimal downtime
Manufacturer Information
Qingdao Baidun operates under two distinct brands: "Baidun" for the domestic Chinese market and "J&J" for overseas markets. It ranks among China's leading crucible manufacturers utilizing isostatic pressing technology to produce silicon carbide graphite crucibles and clay graphite crucibles.
Through years of dedicated R&D and practical testing, Qingdao Baidun's technical team has successfully overcome numerous challenges, developing crucibles that offer exceptional oxidation resistance, high thermal conductivity, extended service life, and reduced energy consumption. These innovations help non-ferrous metal smelters enhance production efficiency and significantly cut operational costs.
Since 2016, Qingdao Baidun has been consistently recognized by independent third-party industry authorities as the top crucible brand in China's die-casting sector.
Packaging & Shipping
Packing: Professional export packaging, wooden box or wooden box packaging, cardboard, carton, ton bag, or packaging according to customer requirements.
Delivery time: 10-45 days after confirming the order, the specific delivery date should be determined according to the order quantity.
Frequently Asked Questions
Q: What is the brand name of the Conventional Type Crucible?
A: The brand name is J&J/Baidun.
Q: Where is the Conventional Type Crucible manufactured?
A: The Conventional Type Crucible is manufactured in Qingdao, China.
Q: What is the minimum order quantity for the Conventional Type Crucible?
A: The minimum order quantity is 1pc.
Q: What are the packaging details for the Conventional Type Crucible?
A: The packaging details include wooden cases.
Q: What are the accepted payment terms for purchasing the Conventional Type Crucible?
A: The accepted payment terms are TT/DP/LC.
