Durable Copper Melting Crucible with Silicon Carbide Graphite Material
Style
Conventional type Crucible
Application
Melting and casting of non-ferrous metals
Material
Silicon Carbide and Graphite
Corrosion Resistance
Good
Thermal Conductivity
High

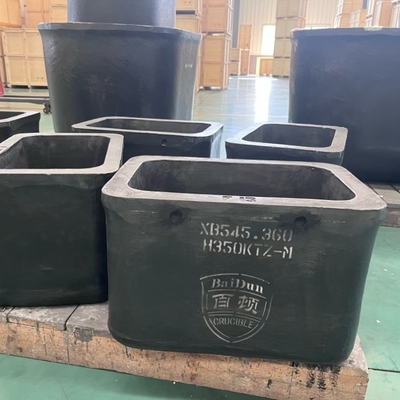

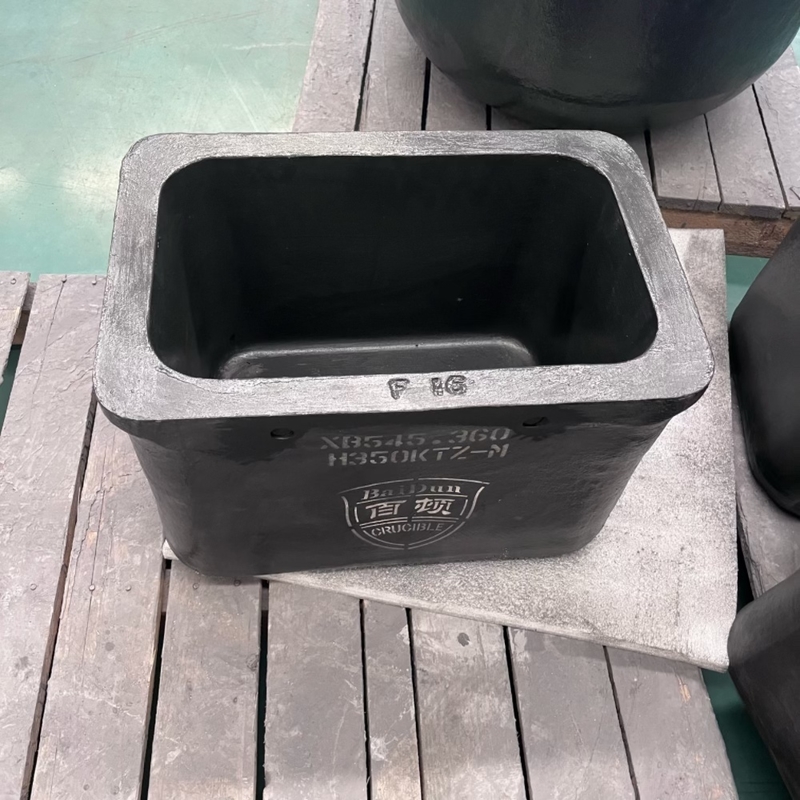

Premium Silicon Carbide Graphite Crucible for Copper Melting
The Silicon Carbide Graphite (SiC Graphite) Crucible is a premium refractory vessel specifically engineered for the demanding process of copper melting and refining. This high-performance composite crucible combines silicon carbide (SiC) with crystalline graphite, delivering unmatched thermal, mechanical, and chemical properties for extreme melting applications.
Key Features
- Exceptional Thermal Stability: Withstands temperatures exceeding 1100°C without deformation or cracking, even under rapid thermal cycling.
- Superior Oxidation Resistance: Highly resistant to oxidation in air at elevated temperatures, protecting crucible integrity and minimizing contamination.
- High Thermal Conductivity: Ensures rapid and uniform heat distribution for efficient, energy-saving melting operations.
- Excellent Chemical Inertness: Demonstrates minimal reactivity with molten metals, preserving purity and minimizing metal loss.
Technical Specifications
| Name |
SiC Graphite Crucible For Copper Melting |
Category |
Isostatic Graphite Crucible |
| Material |
Silicon Carbide And Graphite |
Brand |
Baidun/J&J |
| Place of Origin |
ShanDong, China |
Application |
Melting And Holding Of Non-ferrous Metals |
| Applicable Target |
Oil Furnace, Gas Furnace, Coal Furnace, Flame Furnace, Electric Furnace |
Style |
Conventional Type Crucible |
| Maximum Working Temperature |
1600℃ |
Melting Metal |
Non-ferrous metals |
Chemical Composition
| Items |
UNIT |
Value |
| Carbon |
% |
36~40 |
| Sic |
% |
26~30 |
| SiO2 |
% |
14~18 |
| Si |
% |
2~5 |
| Al2O3 |
% |
8~10 |
| Na2O, K2O, Fe2O3, B2O3 & others |
% |
2~4 |
Qingdao Baidun's SiC Graphite Crucibles deliver uncompromised performance in high-purity copper processing - where crucible failure risks catastrophic contamination. Engineered for extreme thermal cycling and aggressive metallurgical environments.
Industrial Applications
- Copper: OFC, bronze, brass melting
- Aluminum: Alloy production, recycling
- Precious Metals: Gold, silver refining
- Specialty Processes: Vacuum melting, induction furnaces
Metal Compatibility
| Metal Type |
Max Temp (°C) |
Performance Benefit |
| Gold/Silver |
1,100 |
Zero contamination • Minimal precious metal loss |
| Copper/Bronze |
1,300 |
Resistance to CuO slag erosion |
| Aluminum Alloys |
900 |
Prevents Al penetration • Flux corrosion resistance |
| Zinc/Tin/Lead |
750 |
Longevity in low-melt applications |
Manufacturer Profile
Qingdao Baidun Special Ceramics Technology Co., LTD. is located in the SCO Demonstration Area, Qingdao, China. The company specializes in the manufacture of crucibles for non-ferrous metal smelting, refractory products for continuous casting and alumina grinding balls. With a registered capital of 100 million RMB and covering an area of 100,000㎡, Qingdao Baidun operates two brands: "Baidun" for the Chinese market and "J&J" for overseas markets.
Qingdao Baidun is one of the largest crucible manufacturers in China using isostatic pressing technology to produce silicon carbide graphite crucibles and clay graphite crucibles. Our technical team has developed crucibles with characteristics of high oxidation resistance, high thermal conductivity, long service life, and low energy consumption, significantly reducing production costs for non-ferrous metal smelting companies.
Packaging & Shipping
Packing: Professional export packaging, wooden box or wooden box packaging, cardboard, carton, ton bag, or customized packaging according to customer requirements.
Delivery time: 10-45 days after confirming the order, with specific delivery date determined by order quantity.
Frequently Asked Questions
Q: What is the brand name of the Conventional Type Crucible?
A: The brand name is J&J/Baidun.
Q: Where is the Conventional Type Crucible manufactured?
A: The Conventional Type Crucible is manufactured in Qingdao, China.
Q: What is the minimum order quantity for the Conventional Type Crucible?
A: The minimum order quantity is 1pc.
Q: What are the packaging details for the Conventional Type Crucible?
A: The packaging details include wooden cases.
Q: What are the accepted payment terms for purchasing the Conventional Type Crucible?
A: The accepted payment terms are TT/DP/LC.
