Smooth Surface Zinc Melting Crucible with Customizable Size and Excellent Thermal Shock Resistance Graphite Material
Product Details:
| Place of Origin: | China |
| Brand Name: | Baidun/J&J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiate |
| Packaging Details: | Export Wooden Packing |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 100pcs+ |
|
Detail Information |
|||
| Style: | Conventional Type Crucible | Application: | Melting And Casting Of Non-ferrous Metals |
|---|---|---|---|
| Surface Finish: | Smooth | Country Of Origin: | China |
| Material: | Silicon Carbide And Graphite | Shape: | Cylindrical |
| Corrosion Resistance: | Good | Thermal Conductivity: | High |
| Density: | 2.21-2.25 G/cm3 | ||
| Highlight: | Smooth Surface Zinc Melting Crucible,Shock Resistance Zinc Melting Crucible |
||
Product Description

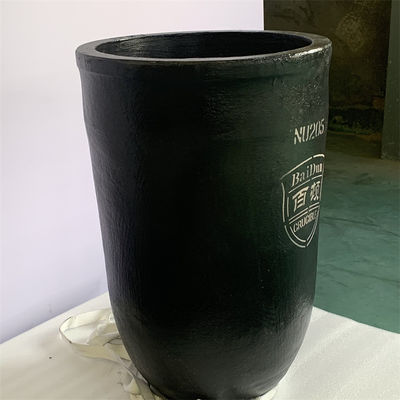

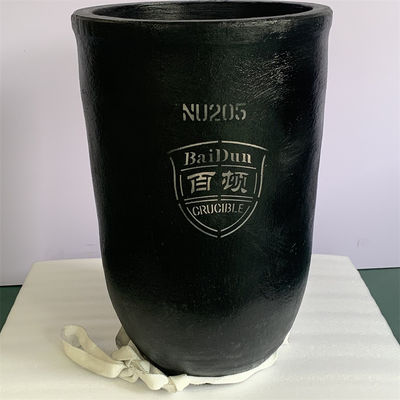

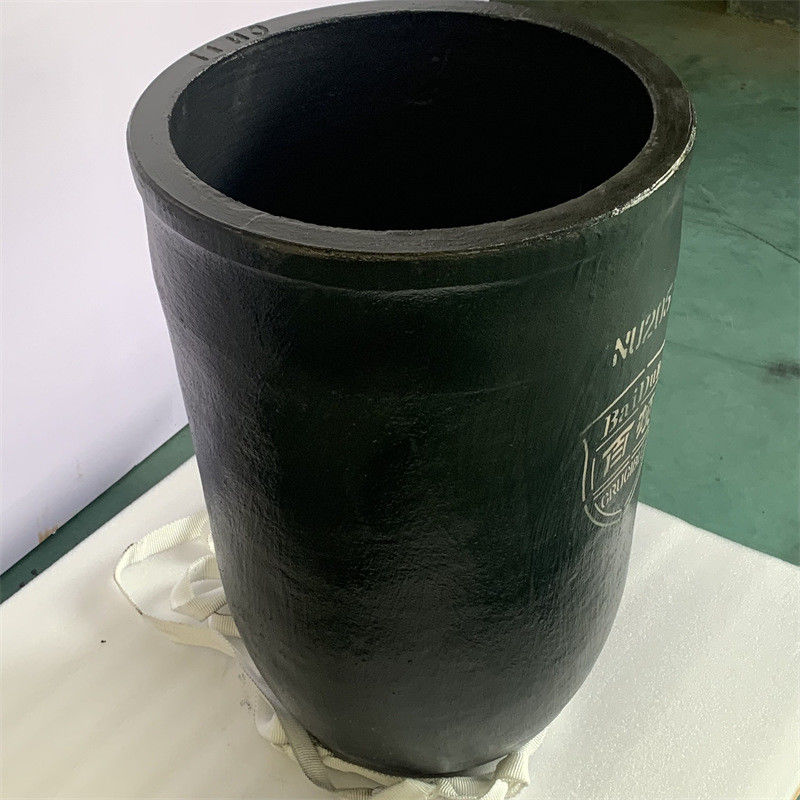

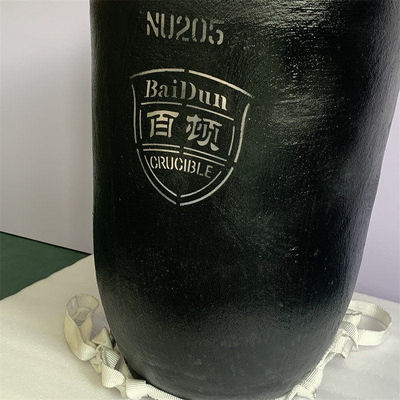

Smooth Surface Zinc Melting Crucible
Premium Graphite Crucible for Non-Ferrous Metal Melting
Our high-performance Zinc Melting Crucible is engineered for efficient melting and casting of non-ferrous metals. Crafted from premium silicon carbide and graphite composite, it delivers exceptional thermal conductivity and durability in industrial applications.
Key Specifications
| Style | Conventional type Crucible |
| Application | Melting and casting of non-ferrous metals |
| Material | Silicon Carbide and Graphite |
| Density | 2.21-2.25 g/cm³ |
| Maximum Temperature | 1600℃ |
| Surface Finish | Smooth |
Product Advantages
- Excellent thermal shock resistance for prolonged service life
- Customizable sizes from 5kg to 1000kg capacity
- Smooth surface finish ensures optimal metal flow
- High thermal conductivity for energy-efficient melting
- Superior corrosion resistance against molten metals
Technical Specifications
| Name | SiC Graphite Crucible For Zinc Melting |
| Category | Isostatic Graphite Crucible |
| Brand | Baidun/J&J |
| Applicable Furnaces | Oil, Gas, Coal, Flame, Electric |
Chemical Composition
| Component | Unit | Value |
|---|---|---|
| Carbon | % | 36~40 |
| SiC | % | 26~30 |
| SiO2 | % | 14~18 |
| Si | % | 2~5 |
Qingdao Baidun's SiC Graphite Crucibles deliver uncompromised performance in high-purity metal processing, engineered for extreme thermal cycling and aggressive metallurgical environments.
Metal Compatibility
| Metal Type | Max Temp (°C) | Performance Benefit |
|---|---|---|
| Gold/Silver | 1,100 | Zero contamination • Minimal precious metal loss |
| Copper/Bronze | 1,300 | Resistance to CuO slag erosion |
| Aluminum Alloys | 900 | Prevents Al penetration • Flux corrosion resistance |
Manufacturer Profile
Qingdao Baidun Special Ceramics Technology Co., LTD is a leading crucible manufacturer in China, specializing in high-performance crucibles for non-ferrous metal smelting. With a 100,000㎡ facility and two established brands ("Baidun" and "J&J"), we produce premium silicon carbide graphite crucibles using isostatic pressing technology.
Packaging & Shipping
- Professional export packaging (wooden cases, cartons, or custom options)
- Delivery within 10-45 days after order confirmation
- Flexible packaging solutions based on customer requirements
Frequently Asked Questions
What is the brand name of the crucible?
The brand name is J&J/Baidun.
Where is the crucible manufactured?
Manufactured in Qingdao, China.
What is the minimum order quantity?
Minimum order quantity is 1 piece.
