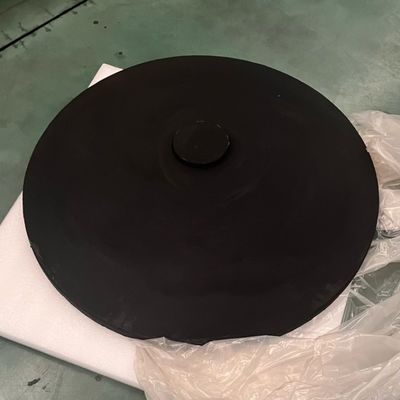

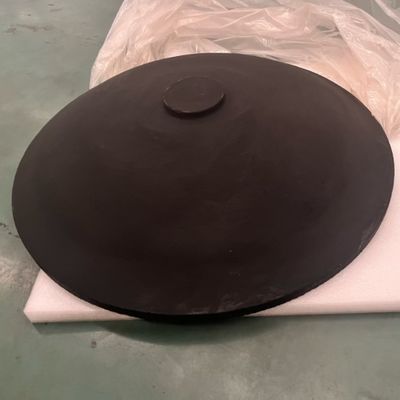

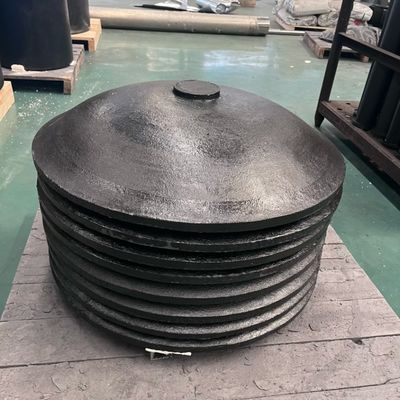

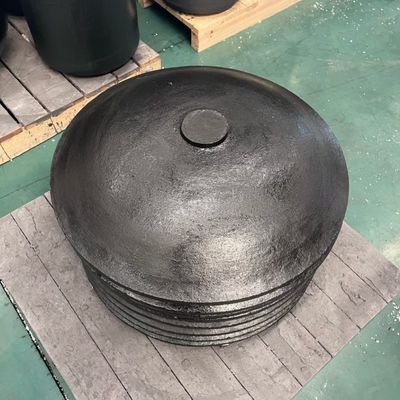

Advanced Crucible Cover And Metal Casting SiC Graphite Crucible for Copper Melting in High-Temperature Environments
Product Details:
| Place of Origin: | China |
| Brand Name: | Baidun/J&J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiate |
| Packaging Details: | Export Wooden Packing |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 100pcs+ |
|
Detail Information |
|||
| Style: | Conventional Type Crucible | Application: | Melting And Casting Of Non-ferrous Metals |
|---|---|---|---|
| Surface Finish: | Smooth | Country Of Origin: | China |
| Material: | Silicon Carbide And Graphite | Shape: | Cylindrical |
| Corrosion Resistance: | Good | Thermal Conductivity: | High |
| Density: | 2.21-2.25 G/cm3 | ||
| Highlight: | Metal Casting SiC Graphite Crucible,Crucible Cover SiC Graphite Crucible,High Temperature SiC Graphite Crucible |
||
Product Description

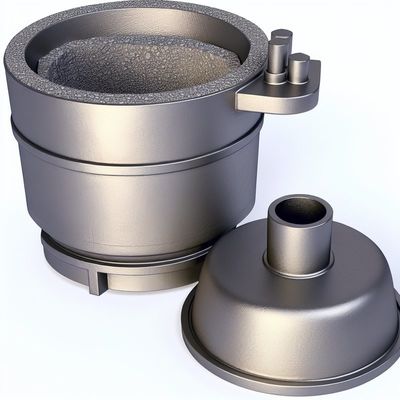

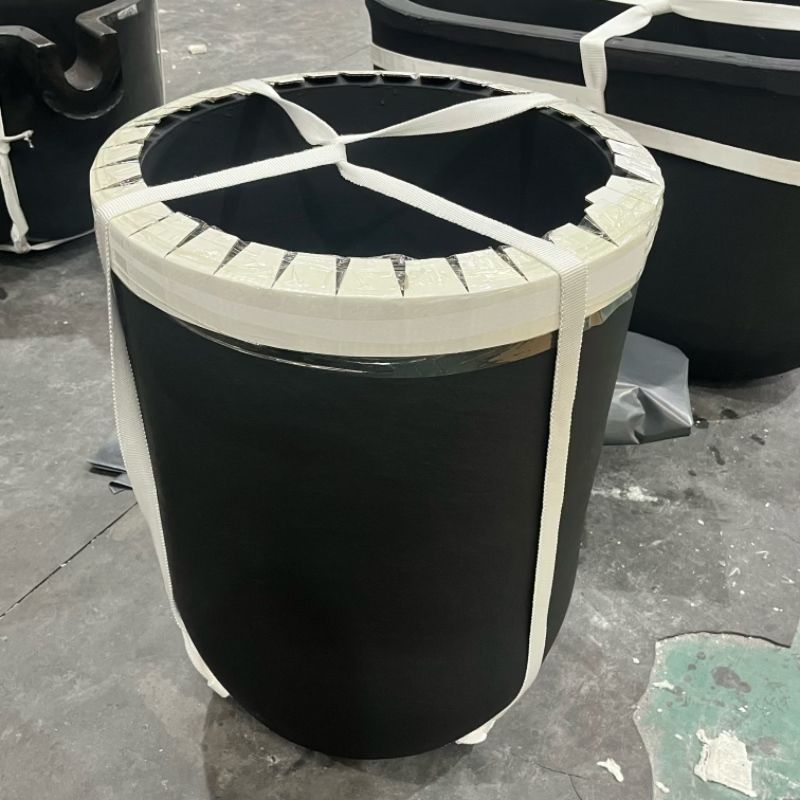

Advanced Crucible Cover And Metal Casting SiC Graphite Crucible
High-performance silicon carbide graphite crucible designed for copper melting in extreme high-temperature environments up to 1600°C (2912°F).
Key Attributes
| Attribute | Value |
|---|---|
| Style | Conventional type Crucible |
| Application | Melting and casting of non-ferrous metals |
| Material | Silicon Carbide and Graphite |
| Shape | Cylindrical |
| Maximum Temperature | 1600°C (2912°F) |
| Density | 2.21-2.25 g/cm³ |
Performance Advantages
- Exceptional Temperature Resistance: Withstands continuous operation up to 1600°C (2912°F) - significantly above copper's melting point (~1085°C)
- Superior Thermal Shock Resistance: Resists cracks from rapid temperature changes during charging, pouring, and furnace cycling
- High Thermal Conductivity: Graphite composition enables efficient heat transfer for faster melting and energy savings
- Oxidation Resistance: Protective silica layer formation slows degradation in copper melting atmospheres
- Extended Service Life: Resists erosion and thermal cycling fatigue better than alternatives
- Chemical Inertness: Maintains integrity against common copper fluxes and oxides
Technical Specifications
| Name | SiC Graphite Crucible For Copper Melting | Category | Isostatic Graphite Crucible |
|---|---|---|---|
| Material | Silicon Carbide And Graphite | Brand | Baidun/J&J |
| Place of Origin | ShanDong, China | Application | Melting And Holding Of Non-ferrous Metals |
| Furnace Compatibility | Oil Furnace, Gas Furnace, Coal Furnace, Flame Furnace, Electric Furnace | ||
Chemical Composition
| Component | Unit | Value |
|---|---|---|
| Carbon | % | 36~40 |
| SiC | % | 26~30 |
| SiO2 | % | 14~18 |
| Al2O3 | % | 8~10 |
Industrial Applications
- Foundries and metal casting operations for copper, brass, and bronze
- Precision casting of copper alloys in continuous production environments
- Jewelry manufacturing, metal recycling, and laboratory-scale melting
- Induction furnaces, fuel-fired furnaces, and resistance furnaces
Manufacturer Profile
Qingdao Baidun Special Ceramics Technology Co., LTD. is a leading Chinese manufacturer specializing in crucibles for non-ferrous metal smelting. With a 100,000㎡ facility and 100 million RMB registered capital, Baidun produces high-performance crucibles using isostatic pressing technology under the "Baidun" and "J&J" brands.
Packaging & Shipping

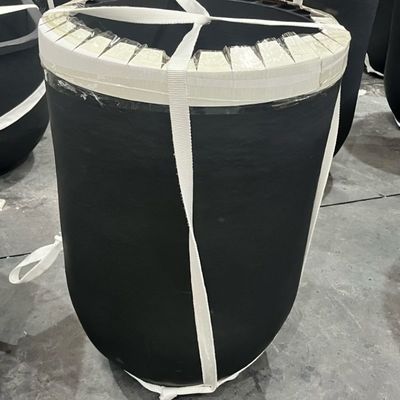

Packing: Professional export packaging including wooden cases, cardboard, or custom solutions
Delivery: 10-45 days after order confirmation (varies by quantity)
Frequently Asked Questions
Q: What is the brand name of the Conventional Type Crucible?
A: The brand name is J&J/Baidun.
Q: Where is the crucible manufactured?
A: Manufactured in Qingdao, China.
Q: What is the minimum order quantity?
A: Minimum order quantity is 1 piece.
