100 - 250kg High Performance Graphite Crucibles for Ferrous & Non-Ferrous Metals
Product Details:
| Place of Origin: | China |
| Brand Name: | Baidun/J&J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiate |
| Packaging Details: | Export Wooden Packing |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 100pcs+ |
|
Detail Information |
|||
| Style: | Conventional Type Crucible | Application: | Melting And Casting Of Non-ferrous Metals |
|---|---|---|---|
| Surface Finish: | Smooth | Country Of Origin: | China |
| Material: | Silicon Carbide And Graphite | Shape: | Cylindrical |
| Corrosion Resistance: | Good | Thermal Conductivity: | High |
| Density: | 2.21-2.25 G/cm3 | ||
Product Description
Product Description:

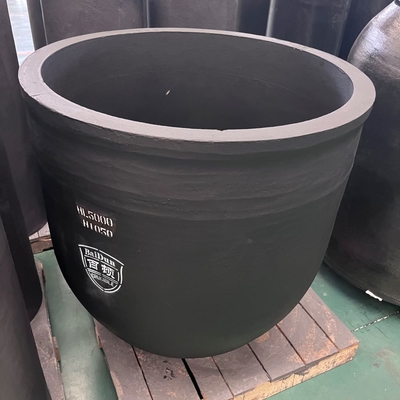

The Silicon Carbide Graphite Crucible also known as SiC Graphite Crucible or Silicon Carbon Graphite Pot, is a high-quality crucible designed for various high-temperature applications. This crucible offers exceptional performance due to its unique composition and excellent attributes.
Silicon carbide Graphte crucible is bowl ceramic with deep bottom, they are made of different content of silicon carbide particles added into the graphite crucible, etc by fundamental of isostatic compaction technology. It is new generation of silicon carbide graphite crucible adopted high-grade refractory material and formula. According to application, there are special silicon carbide crucibles for melting copper,aluminum,zinc oxide, zinc, and tin.
Product Features:
1. High temperature resistance and high refractoriness.
2. Fast heat transfer, shorten smelting time and save energy.
3. Isostatic pressing is adopted, no internal structural defects, and high physical strength.
4. Unique anti-oxidation design is adopted, and the anti-oxidation performance is 5-10 times that of ordinary graphite crucibles.
5. Low porosity, adding special additives, can effectively resist the corrosion of slag and other melts.
6. Strong corrosion resistance to acidic and alkaline solutions, good chemical stability.
7. Good thermal shock resistance, strong resistance to sudden cooling and heating.
8. High-density green body, low apparent porosity, good thermal conductivity.
9. Compared with ordinary clay crucibles, the service life is extended by 3-5 times.
Product Details:
Product Chemical Composition
|
Items |
UNIT |
Value |
|
Carbon |
% |
36~40 |
|
Sic |
% |
26~30 |
|
SiO2 |
% |
14~18 |
|
Si |
% |
2~5 |
|
Al2O3 |
% |
8~10 |
|
Na2O, K2O, Fe2O3, B2O3 & others |
% |
2~4 |
Conventional Type SiC Graphite Crucible is suitable for a variety of product application occasions and scenarios, with its versatility and robust construction. It is commonly used for Crucible Melting for copper, Crucible Melting for aluminum, and other metal melting processes that require a high temperature environment.
Application:
They can be used for resistance furnace, induction furnace, biological particles furnace, gas furnace, coke oven, furnace oil, and gas furnace to melt gold, silver, copper, aluminum, tin, lead, zinc and other nonferrous metals, and various non-ferrous alloys.
Factory Introduction
Qingdao Baidun Special Ceramics Technology Co., LTD.(Qingdao Baidun) is located in the SCO Demonstration Area,Qinadao,China, Qinadao Baidun and it’s subsidiaries specializes in the manufacture of crucibles for non-ferrous metal smelting, refractory products for continuous casting and alumina grinding ball. lt has a registered capital of 100milion RMB and covers an area of 100,000㎡. Qinadao Baidun has two brands, “Baidun"and “J&J” .which are respectively for Chinese and overseas markets, Qingdao Baidun is one of the largest crucible manufacturers in China that uses isostatic pressing technology to produce silicon carbide graphite crucibles and clay graphite crucibles. With many years ofresearch and field tests, the technical team of Qinadao Baidun has made sianificant efforts tosolve various technical problems and developed silicon carbide graphite crucibles and clay graphite crucibles which have characteristics of high oxidation resistance,high thermal conductivity, long service life, and low energy consumption, increasing production efficiency and significantly reducing production costs for non-ferrous metal smelting companies, Third-party professional institutions have selected Qinadao Baidun as the champion crucible brandin Chinese die-casting industry for many years since 2016.
J&J/Baidun Crucible is a top-quality product made in China, known for its high temperature resistance, chemical resistance, and durability. Composed of high pure materials such as SiC and clay, this crucible is designed for laboratory applications requiring reliable performance under extreme conditions.

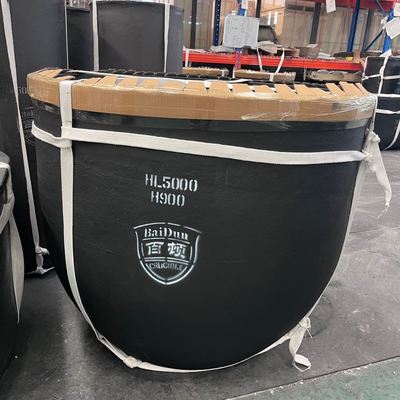

Packing:Use professional export packaging, wooden box or wooden box packaging, cardboard, carton, ton bag, or packaging according to customer requirements.
Delivery time: 10-45 days after confirming the order, the specific delivery date should be determined according to the and order quantity.
FAQ
Q: What is the brand name of the Conventional Type Crucible?
A: The brand name is J&J/Baidun.
Q: Where is the Conventional Type Crucible manufactured?
A: The Conventional Type Crucible is manufactured in Qingdao, China.
Q: What is the minimum order quantity for the Conventional Type Crucible?
A: The minimum order quantity is 1pc.
Q: What are the packaging details for the Conventional Type Crucible?
A: The packaging details include wooden cases.
Q: What are the accepted payment terms for purchasing the Conventional Type Crucible?
A: The accepted payment terms are TT/DP/LC.
