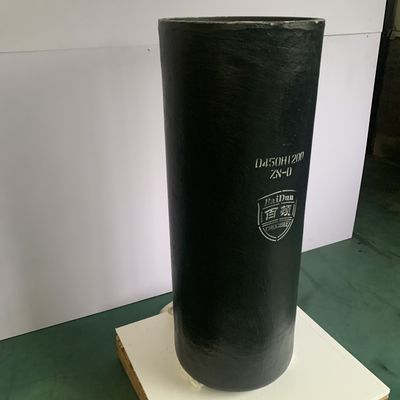

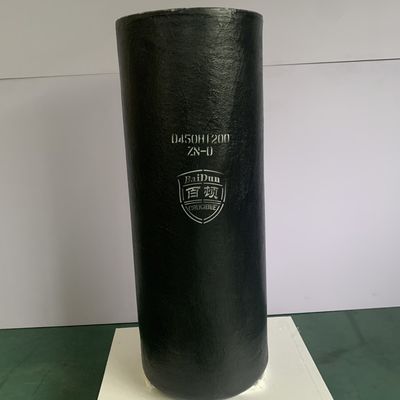

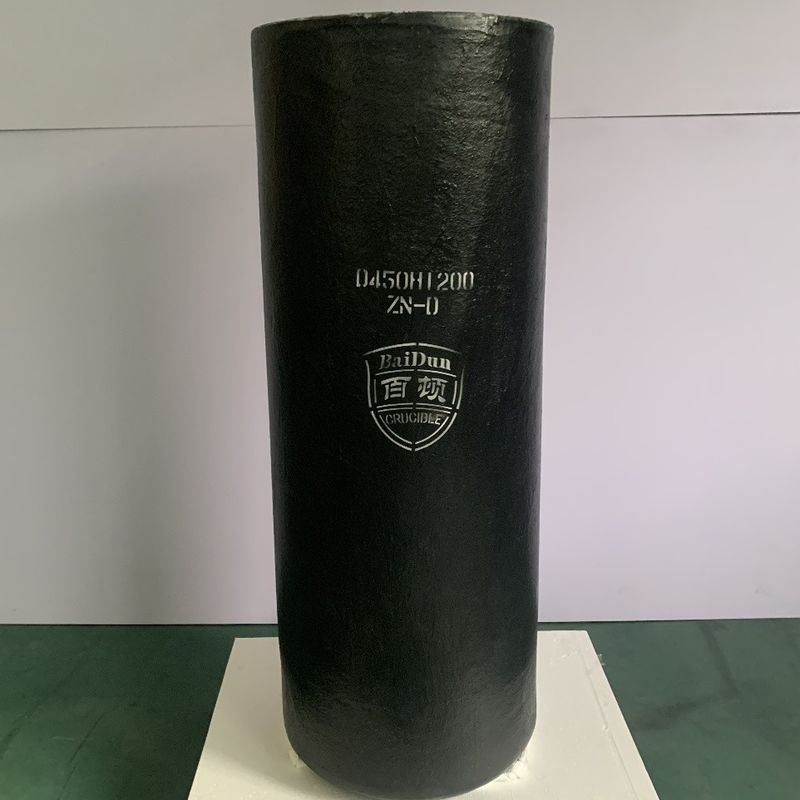

Silicon Carbide Graphite Crucible for Non-Ferrous Metal Melting
Product Details:
| Place of Origin: | China |
| Brand Name: | Baidun/J&J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiate |
| Packaging Details: | Export Wooden Packing |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 100pcs+ |
|
Detail Information |
|||
| Style: | Conventional Type Crucible | Application: | Melting And Casting Of Non-ferrous Metals |
|---|---|---|---|
| Surface Finish: | Smooth | Country Of Origin: | China |
| Material: | Silicon Carbide And Graphite | Shape: | Cylindrical |
| Corrosion Resistance: | Good | Thermal Conductivity: | High |
| Density: | 2.21-2.25 G/cm3 | ||
| Highlight: | silicon carbide graphite crucible,induction furnace melting crucible,non-ferrous metal melting crucible |
||
Product Description
Optimized for high-temperature melting of non-ferrous metals in induction furnace environments, this crucible delivers exceptional performance for processing aluminum, copper, brass, bronze, zinc, and precious alloys.
| Attribute | Value |
|---|---|
| Style | Conventional type Crucible |
| Application | Melting and casting of non-ferrous metals |
| Surface Finish | Smooth |
| Country Of Origin | China |
| Material | Silicon Carbide and Graphite |
| Shape | Cylindrical |
| Corrosion Resistance | Good |
| Thermal Conductivity | High |
| Density | 2.21-2.25 g/cm3 |
- Proprietary composite of silicon carbide (SiC)-bonded graphite
- Optimized wall thickness for efficient heat transfer and electromagnetic penetration
- Enhanced slag-line erosion resistance
- Customizable geometries for coreless/channel induction systems
- Ultra-high density (≥2.2 g/cm³) for improved longevity
- Maximum working temperature of 1600°C
| Name | Induction Furnace Crucible | Category | Isostatic Graphite Crucible |
|---|---|---|---|
| Material | Silicon Carbide And Graphite | Brand | Baidun/J&J |
| Place of Origin | ShanDong, China | Application | Melting And Holding Of Non-ferrous Metals |
| Applicable target | Oil Furnace, Gas Furnace, Coal Furnace, Flame Furnace, Electric Furnace | Style | Conventional Type Crucible |
- Oxidation Resistance: The SiC layer significantly protects the graphite core from oxidation at high temperatures.
- Chemical Resistance: Resists erosion and corrosion from molten non-ferrous metals and common slags/fluxes.
- Mechanical Strength: High strength at temperature reduces the risk of breakage and extends crucible life.
| Items | Unit | Value |
|---|---|---|
| Carbon | % | 36~40 |
| Sic | % | 26~30 |
| SiO2 | % | 14~18 |
| Si | % | 2~5 |
| Al2O3 | % | 8~10 |
| Na2O, K2O, Fe2O3, B2O3 & others | % | 2~4 |
- Core technology for silicon carbide graphite crucibles in coreless induction furnaces
- Ideal for non-ferrous metals and alloys (Al, Cu, Zn, precious metals)
- Perfect for foundries, casting shops, recyclers, and jewelers/refiners
- Universal benefits include longer service life, reduced downtime, and improved energy efficiency
Qingdao Baidun Special Ceramics Technology Co., LTD. is located in the SCO Demonstration Area, Qingdao, China. With a registered capital of 100 million RMB and covering an area of 100,000㎡, Baidun specializes in the manufacture of crucibles for non-ferrous metal smelting.
The company operates two brands, "Baidun" for Chinese market and "J&J" for overseas markets, and is recognized as one of the largest crucible manufacturers in China using isostatic pressing technology.
Packing: Professional export packaging, wooden box or wooden box packaging, cardboard, carton, ton bag, or packaging according to customer requirements.
Delivery time: 10-45 days after confirming the order, specific delivery date determined by order quantity.
